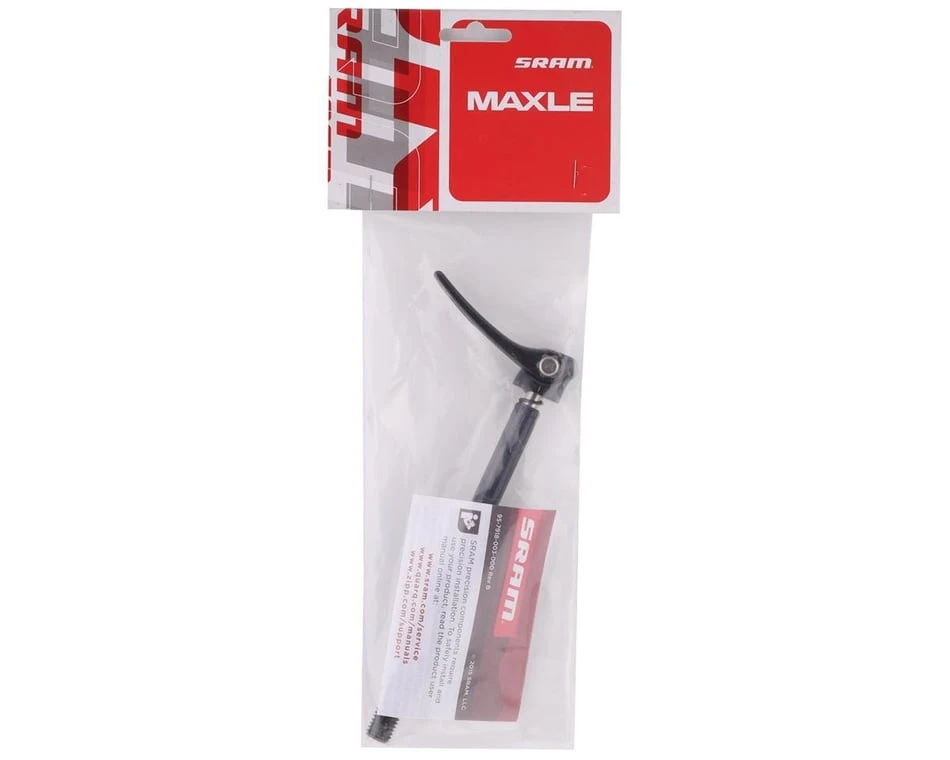

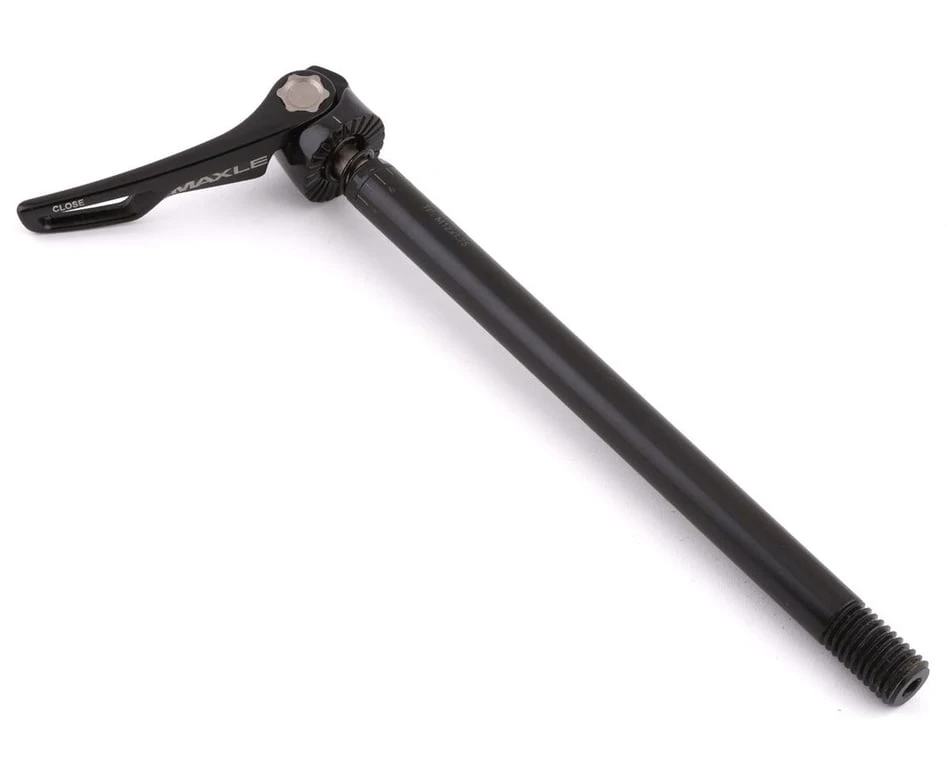

Rock Shox Frame Maxle-Ultimate Thru-Axle Assembly.
Features:
- Quick-release style lever integrated into an end-threaded thru-axle assembly for Maxle compatible frames
- Hard anodized 7075 aluminum construction with a 360-degree lever-clocking design
- Overall Length (OL) dimensions are from the axle side of the shoulder to the end of the threads (12x142mm versions have different OL dimensions depending on OEM application)
- Replaces ’08/09 Rear-Maxle system (lever internals are not cross-compatible with original design so use complete axle assembly)
| Length | Hub Spacing | Thread Pitch | Thread Length | Application |
| 167mm | 12 x 135mm | M12 x 1.75mm | 20mm | Standard |
| 188mm | 12 x 148mm | M12 x 1.75mm | 20mm | Boost |
| 195mm | 12 x 142mm | M12 x 1.75mm | 20mm | Split Pivot Custom |
This product was added to our catalog on September 8, 2020
